Product Introduction

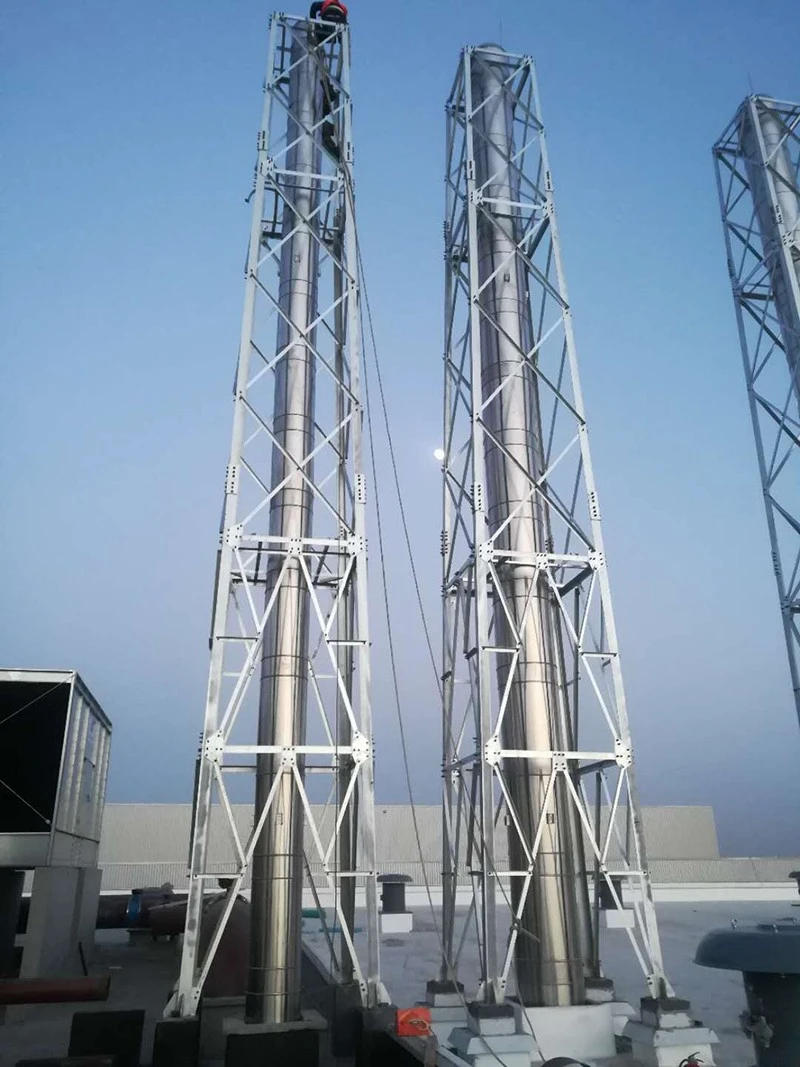

Chimney Tower is used for high-altitude emission of industrial waste gas (power plants/chemical plants/steel plants). It adopts a segmented structure of angle steel (10–120m) to improve diffusion efficiency, reduce ground pollution, and meet environmental protection and safety requirements.

Parameter

Parameter Category	Core Indicators
Basic Parameters	Tower Height (10-120m optional), Tower Cross-section Shape (Square, side width 1.5-6m), Segment Height (≤6m per segment, for ease of transportation)
Main Material Parameters	Angle Steel Specifications (L40×4~L200×20), Material (Q235B/Q345B/ASTM A36), Connection Method (Bolted connection, M16~M30 high-strength bolts)
Load Parameters	Design Wind Speed (30-60m/s, needs to match meteorological data of the target area), Ice Thickness (0-50mm), Seismic Intensity (6-9 degrees), Antenna Load (single antenna ≤500kg)
Corrosion Protection Parameters	Hot-dip Galvanizing Layer Thickness (steel thickness ≤-5, galvanizing layer ≥55μm; steel thickness ≥-6, galvanizing layer ≥85μm; bolts ≥55μm), Coating Life (≥20 years)
Foundation Parameters	Foundation Bearing Capacity Requirement (≥150kPa), Foundation Type (Independent foundation/Raft foundation)

Core Advantages

High-strength Structure: Q235B/Q345B steel + angle steel structure, wind resistance 30–60m/s, earthquake resistance 6–9, ensuring long-term stability.

Hot-dip Galvanized Corrosion Protection: Zinc coating ≥55–85μm, strong corrosion resistance.

Multi-Load Adaptability: Supports icing 0–50mm, antenna ≤500kg, adaptable to complex environments.

Customization Services

Dimensions: 10–120m, 1.5–6m high cross-section, ≤6m segments

Materials: Q235B / Q345B / ASTM A36

Environment: Wind speed 30–60m/s, seismic resistance 6–9, icing 0–50mm

Corrosion protection: Hot-dip galvanizing / powder coating

Foundation: Independent foundation / raft foundation (≥150kPa)

Why Choose Us

Mature Industry Experience: Years of experience in steel structure tower manufacturing, serving multiple industries including power, chemical, and environmental protection, with familiarity with various emission and structural design standards.

Strong Production Capacity: Standardized production lines and modular manufacturing processes support stable delivery of large-volume orders, shortening project cycles.

Strict Quality Control: From raw material testing and galvanizing thickness testing to finished product structural inspection, a standardized quality system is implemented throughout the entire process, with key indicators traceable.
