Yifeng Steel Structure: Your Professional Corrugated Steel Culvert Supplier！
As a professional factory and manufacturer with over 20 years of deep-rooted industry experience, we were established in 2005 and specialize in the R&D of power transmission towers, communication towers, and various types of steel structural towers.
Extensive Project Experience
Our products have been successfully deployed across a wide range of engineering sectors, including telecommunications, electric power, defense, and meteorology.
Advanced Production Lines
Equipped with cutting-edge machinery—including CNC laser cutters and fully automated angle steel processing lines—to ensure high-precision manufacturing.
End-to-End Production Capabilities
We possess integrated service capabilities encompassing design, manufacturing, installation, and maintenance.
Professional Customization
We provide personalized, one-on-one technical support to address specific requirements regarding dimensions, shapes, and functional specifications.
-

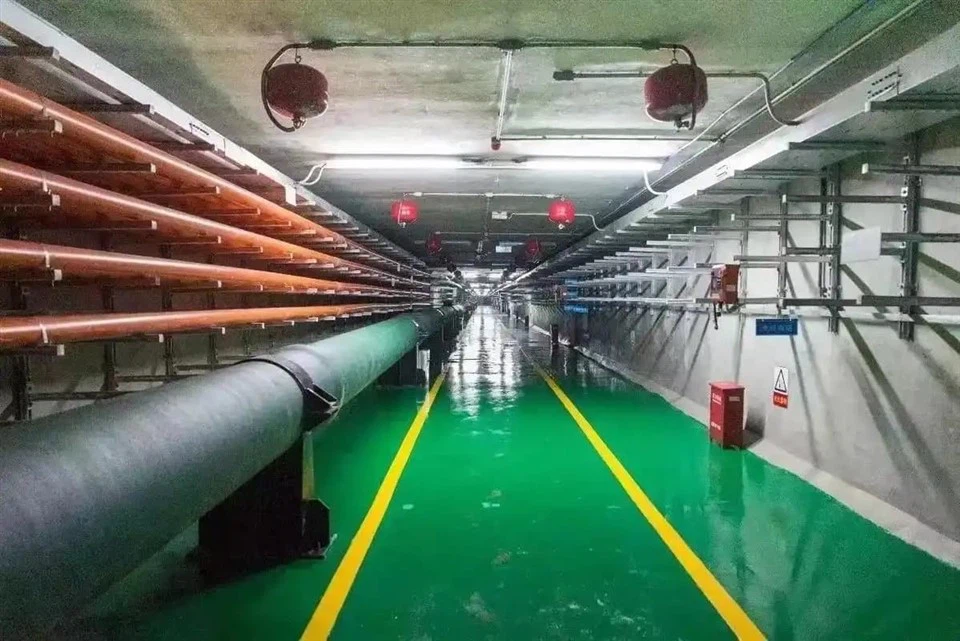

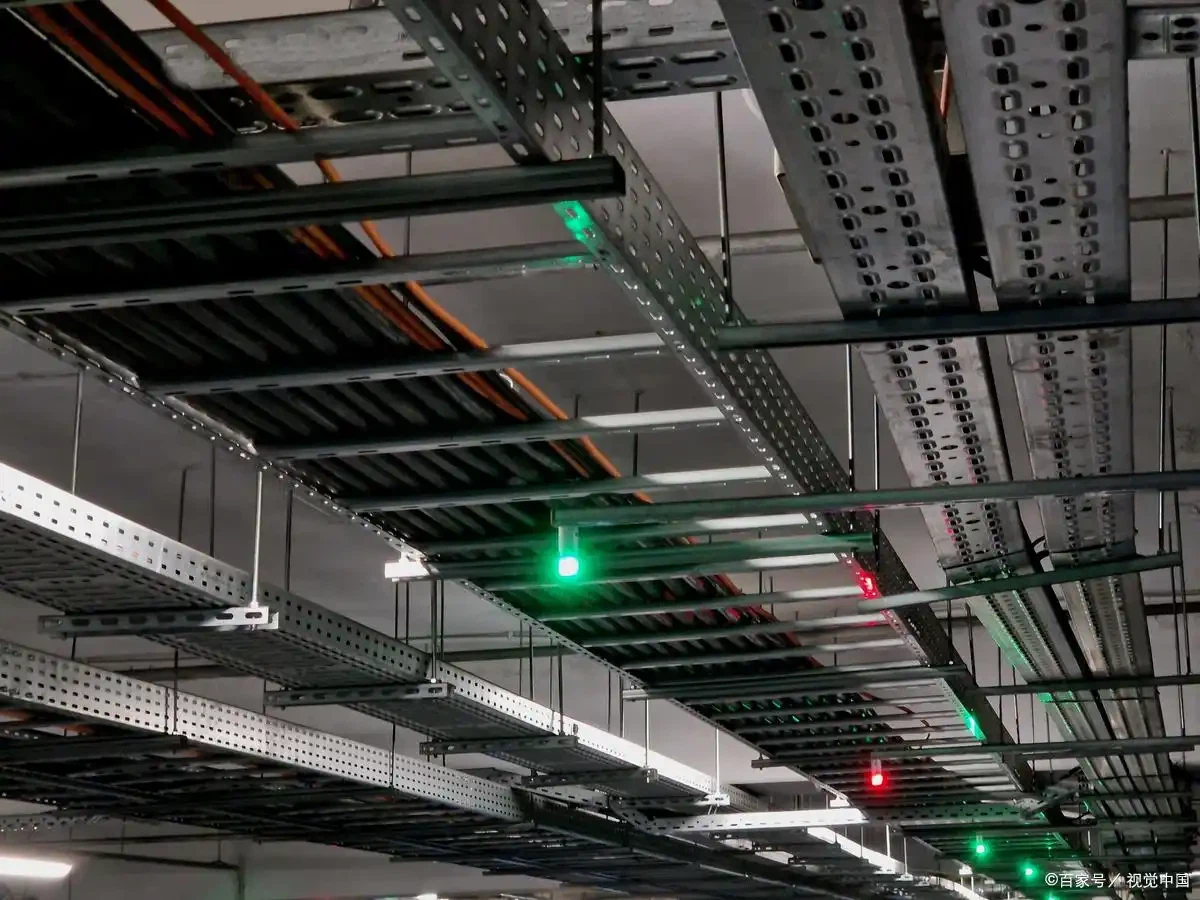

![Steel Urban Underground Integrated Pipeline Corridor]()
Steel Urban Underground Integrated Pipeline CorridorA steel urban underground integrated pipeline corridor is an underground integrated pipe gallery with a steel structure as its main body, used for the centralized laying of power, communication, -
![Wind Tower Foundation Corrugated Outer Tube]()
Wind Tower Foundation Corrugated Outer TubeThe Wind Tower Foundation Corrugated Outer Tube is a corrugated steel outer sheath used for wind turbine tower foundations. It is formed and welded from high-strength steel plates and is used in -
![Bridge Culvert Steel Corrugated Culvert]()
Bridge Culvert Steel Corrugated CulvertBridge Culvert (Steel Corrugated Culvert) is a prefabricated culvert assembled from corrugated steel plates. It is used in highway, railway, and municipal drainage projects, and includes circular, -

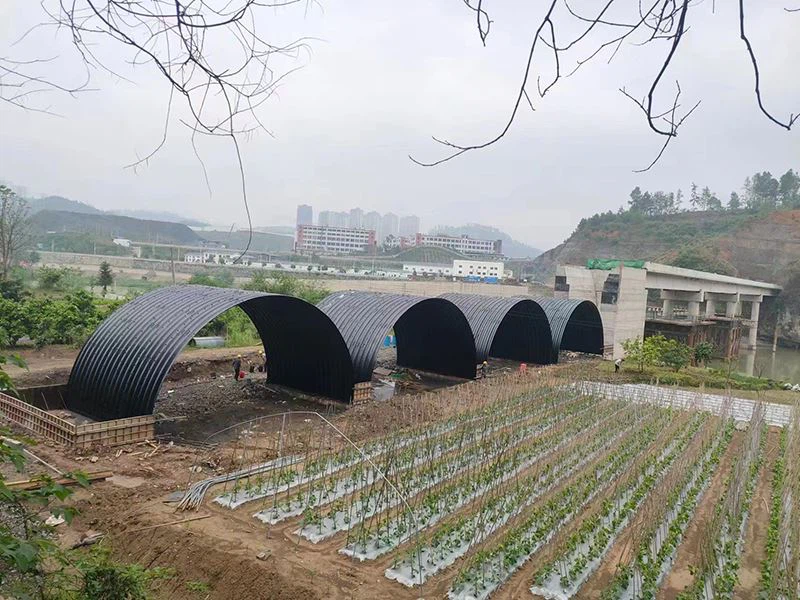

![Corrugated Pipe for Coal Mine Corridor]()
Corrugated Pipe for Coal Mine CorridorCorrugated Pipe for Coal Mine Corridor is a galvanized steel pipe designed for use in coal mines, providing structural support for ventilation, drainage, and material transport. Ideal for ventilation -
![Corrugated Pipe for Subway Passage]()
Corrugated Pipe for Subway PassageCorrugated Pipe for Subway Passage is a galvanized steel pipe for underground support, drainage, and protection of tunnels and utility lines, suitable for metro construction and public infrastructure
Brief Introduction To Corrugated Steel Culvert
The Corrugated Steel Culvert is a structural system of corrugated steel pipes designed for road and underground drainage applications, suitable for use in highways, railways, and municipal drainage networks.
Technical Parameters
|
Item |
Specification |
|
Product name |
Corrugated culvert pipe |
|
Steel plate material |
Q235, SS400 |
|
Thickness |
2 mm - 8 mm |
|
Diameter |
0.5 m - 12 m |
|
Assembly form |
Full and assembled |
|
Shape |
Round, oval, arched |
|
Depth of fill |
1.5 m - 60 m |
|
Diameter DN/IN (mm) |
Minimum average inner diameter (mm) |
Minimum inner wall thickness (mm) |
Minimum laminated wall thickness (mm) |
Maximum spiral distance (mm) |
Minimum steel strip thickness (mm) |
Minimum coating thickness (mm) |
|
300 |
294 |
2.5 |
4.0 |
75 |
0.4 |
2.2 |
|
400 |
392 |
3.0 |
4.5 |
85 |
0.4 |
2.2 |
|
500 |
490 |
3.5 |
5.0 |
100 |
0.5 |
2.5 |
|
600 |
588 |
4.0 |
6.0 |
110 |
0.5 |
2.5 |
|
700 |
685 |
4.0 |
6.0 |
115 |
0.5 |
2.5 |
|
800 |
785 |
4.5 |
7.5 |
120 |
0.7 |
3.0 |
|
900 |
885 |
5.0 |
7.5 |
135 |
0.7 |
3.0 |
|
1000 |
985 |
5.0 |
8.0 |
150 |
0.7 |
3.0 |
|
1100 |
1085 |
5.0 |
8.0 |
165 |
0.7 |
3.0 |
|
1200 |
1185 |
5.0 |
8.0 |
180 |
0.7 |
3.0 |
|
1300 |
1285 |
5.0 |
8.0 |
210 |
1.0 |
3.0 |
|
1400 |
1385 |
5.0 |
8.0 |
210 |
1.0 |
3.0 |
|
1500 |
1485 |
5.0 |
8.0 |
220 |
1.0 |
3.0 |
|
1600 |
1585 |
5.0 |
9.0 |
230 |
1.0 |
3.5 |
|
1800 |
1785 |
5.0 |
9.0 |
230 |
1.0 |
3.5 |
|
2000 |
1985 |
6.0 |
9.0 |
235 |
1.0 |
3.5 |
|
2200 |
2185 |
6.0 |
9.0 |
235 |
1.2 |
3.5 |
|
2400 |
2385 |
6.0 |
10.0 |
235 |
1.2 |
3.5 |
|
2600 |
2585 |
6.5 |
10.0 |
240 |
1.2 |
3.5 |
Features of Corrugated Steel Culvert
Superior Pressure Resistance
Corrugated Steel Culvert is made of Q235/SS400 high-strength steel with a corrugated structure that distributes loads evenly. Its compressive strength is approximately 15 times that of concrete pipes, supporting 1.5–60m of soil cover and heavy traffic pressure.
Long Service Life
Hot-dip galvanized coating effectively resists soil and water corrosion, providing a service life of 80–100 years under typical underground conditions.
Fast Installation
Lightweight modular design (about 1/10 the weight of concrete pipes) with bolted connections reduces construction time by approximately 50%.
Quality Control
Raw Material Inspection
Steel coils are verified for grade, chemical composition, and mechanical properties to ensure compliance with structural and environmental requirements.
Thickness & Dimensional Inspection
Steel plates are checked using high-precision gauges. Thickness is controlled at 2–8 mm with ±0.2 mm tolerance to ensure uniform structural stress distribution.
Corrugation Forming Inspection
Wave height, pitch, and spacing are measured after forming to ensure compliance with design standards and required ring stiffness for load resistance.
Galvanization Inspection
Hot-dip galvanized coating is tested for thickness and uniform adhesion, ensuring full coverage and long-term corrosion resistance in harsh soil conditions.
Hole Position & Connection Inspection
Bolt hole alignment and diameter are verified to ensure accurate assembly and prevent installation stress or misalignment.
Overall Structure Inspection
Finished sections are checked for diameter, length, and roundness to ensure proper alignment and structural continuity after installation.
Packaging Inspection
Before shipment, products are secured with steel straps and waterproof film to prevent coating damage, deformation, or surface scratches during transport.
Customization Capabilities
|
Item |
Specification |
|
Pipe diameter & span |
Can be customized from 300 mm to 12,000 mm according to project cross-section requirements. |
|
Steel plate thickness |
Structural thickness adjustable within 2 mm – 8 mm range. |
|
Corrugated structure parameters |
Wave height and wave pitch can be optimized according to design requirements. |
|
Anti-corrosion system |
Optional hot-dip galvanizing, epoxy coating, or composite anti-corrosion system suitable for different soil corrosion environments. |
|
Connection method |
Supports bolted connection, flange connection, and assembled structure. |
After-Sales Service
Technical Installation Support
Provide installation drawings, step-by-step assembly procedures, and on-site guidance. Remote support is available to resolve alignment and bolting issues, ensuring fast and accurate construction.
Engineering Selection Support
Based on burial depth, load, soil conditions, and drainage flow, we recommend optimal pipe diameter, corrugation type, steel thickness, and anti-corrosion grade to ensure proper structural selection.
Quality Assurance Services
During the warranty period, we repair or replace components with defects caused by materials or manufacturing issues.
Transportation Coordination Services
Offer container loading design and anti-deformation reinforcement, coordinate sea and land transport, and provide real-time logistics updates to reduce damage and delays.
Post-Installation Maintenance
Provide guidance on joint inspection, settlement monitoring, and drainage maintenance to extend service life and maintain long-term system stability.
FAQ
As one of the most professional corrugated steel culvert manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy cost-efficient corrugated steel culvert for sale here from our factory. Contact us for more details.
