China Smart Light Poles Manufacturers, Suppliers and Factory - Smart Light Poles for Sale

Yifeng Steel Structure: Your Professional Smart Light Poles Supplier！

As a professional factory and manufacturer with over 20 years of deep-rooted industry experience, we were established in 2005 and specialize in the R&D of power transmission towers, communication towers, and various types of steel structural towers.

Extensive Project Experience

Our products have been successfully deployed across a wide range of engineering sectors, including telecommunications, electric power, defense, and meteorology.

Advanced Production Lines

Equipped with cutting-edge machinery—including CNC laser cutters and fully automated angle steel processing lines—to ensure high-precision manufacturing.

End-to-End Production Capabilities

We possess integrated service capabilities encompassing design, manufacturing, installation, and maintenance.

Professional Customization

We provide personalized, one-on-one technical support to address specific requirements regarding dimensions, shapes, and functional specifications.

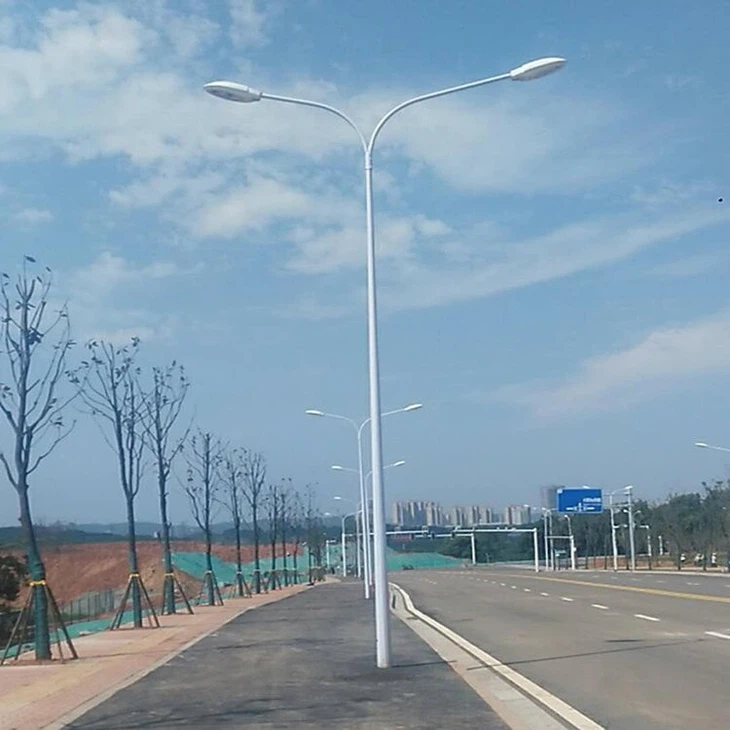

Municipal Light Pole
Municipal Light Pole is a municipal infrastructure used for lighting roads, squares, and public areas. It consists of a steel/aluminum pole, lamp arm, flange, and anti-corrosion coating.

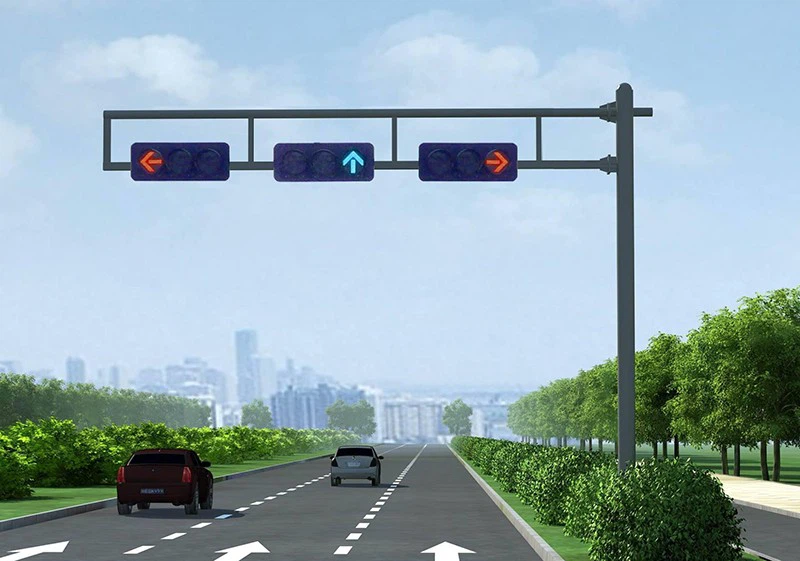

Traffic Signal Pole Types
Traffic Signal Pole Types are steel structure support systems used for the installation of road traffic lights and monitoring equipment. They are applied at urban intersections and main roads and
Smart Light Pole
Smart Light Pole is a multi-functional light pole that integrates lighting, monitoring, communication, and IoT functions, and is used in roads, parks, and smart cities.

Brief Introduction To Smart Light Poles

Smart Light Poles are intelligent urban infrastructure poles designed for road lighting and digital city management.

Technical Parameters

Product Name	Municipal Light Pole								High Mast Pole
Material	Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52
Pole Height	4M	5M	6M	7M	8M	9M	10M	12M	15M-35M
Dimensions(d/D)	60mm/140mm	60mm/150mm	70mm/150mm	70mm/170mm	80mm/180mm	80mm/190mm	85mm/200mm	90mm/210mm	120-300mm/290-710mm
Thickness	3.0mm	3.0mm	3.0mm	3.0mm	3.5mm	3.75mm	4.0mm	4.5mm	5-10mm
Flange	260mm*12mm	260mm*14mm	280mm*16mm	300mm*16mm	320mm*18mm	350mm*18mm	400mm*20mm	450mm*20mm	500-1200mm*20-30mm
Tolerance of dimension	±2/%
Minimum yield strength	285Mpa
Max ultimate tensile strength	415Mpa
Anti-corrosion performance	Class II
Against earthquake grade	10
Color	Customized
Surface treatment	Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II
Shape Type	Conical/tapered pole, Octagonal pole,Square pole, Diameter pole
Arm Type	Customized: Single arm,double arms,triple arms,four arms
Stiffener	With big size to strength the pole to resist the wind
Powder coating	Average thickness of powder coating>100um. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square).
Wind Resistance	According to local weather condition, General design strength of wind resistance is ≥150KM/H
Welding Standard	No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Hot-Dip Galvanized	Average thickness of hot-galvanized>80um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. Designed life of pole is more than 25 years, and the galvanized surface is smooth and with the same color. Flake peeling hasn't been seen after maul test.
Anchor bolts	Optional
Material	Aluminium,SS304 is available
Passivation	Available

Features Of Smart Light Poles

Q345B High-Strength Steel Structure: Constructed from Q345B steel, the Smart Light Poles feature a structural lifespan exceeding 20 years following hot-dip galvanization, making them ideal for long-term outdoor load-bearing applications.

Hot-Dip Galvanized Anti-Corrosion Structure: Featuring a surface layer of hot-dip galvanization combined with powder coating, the structure remains rust-free for 15–20 years, even in high-salinity coastal environments.

IP66 Waterproof Sealing System: The Smart Light Poles utilize an integrated sealed compartment design paired with silicone sealing rings to prevent rainwater ingress into the electronic modules, ensuring stable operation even during heavy downpours.

Modular Quick-Upgrade Structure: Designed with standard interfaces, the system allows for the rapid replacement of cameras, 5G modules, or sensors without the need to dismantle the entire pole structure.

Intelligent Energy-Saving Control System: Dynamic lighting control is achieved through a combination of light sensing, time-based scheduling, and remote dimming, resulting in overall energy savings of 50%–70%.

Quality Control

Steel Material Incoming Inspection: Prior to production, Q235/Q345 steel materials undergo checks for thickness, strength, and compositional consistency to ensure they meet structural load-bearing requirements.

Cutting and Dimensional Accuracy Inspection: Following cutting and forming, a dimensional verification is performed; tolerances for critical components are controlled within ±2% to ensure the structural consistency of the pole body.

Automated Welding Quality Inspection: After robotic welding, weld seams are inspected for appearance and continuity to ensure they are free of cracks, incomplete fusion, and undercuts.

Hot-Dip Galvanizing Anti-Corrosion Layer Inspection: Upon completion of the galvanizing process, the zinc coating thickness is measured to ensure it meets or exceeds 80μm, guaranteeing stable anti-corrosion performance in long-term outdoor environments.

Surface Coating Adhesion Inspection: After powder coating, an adhesion test is conducted to ensure the coating does not peel or flake, thereby maintaining durability in environments exposed to intense UV radiation.

Electrical System Power-On Testing: The LED modules, controllers, and communication modules undergo power-on operational testing to ensure stable system startup and proper communication functionality.

Waterproofing and Sealing Inspection: The electronic compartment's sealing structure is inspected to verify the integrity of its IP66-rated protection, thereby preventing rainwater ingress.

Overall Pole Structural Stability Inspection: Structural stress simulations are conducted to verify that the pole remains stable and free from deformation under wind speeds of up to 150 km/h.

Aging and Operational Endurance Testing: Continuous operational simulation tests are performed to validate the long-term stability and reliability of the lighting and control systems.

Final Factory Inspection and Traceability: Prior to shipment, every pole undergoes a final inspection covering both appearance and functionality, and is assigned a unique serial number to facilitate future traceability.

Customization Capabilities

Category	Description
Pole Height	Supports design heights ranging from 4m to 15m to meet different application scenarios and installation requirements.
Functional Modules	Can integrate cameras, 5G base stations, environmental sensors, or charging modules in a modular and combined configuration.
Pole Structure	Available in circular, octagonal, and square designs to match urban landscape and architectural requirements.
Surface Color	Customizable painting based on RAL color system to comply with urban planning and aesthetic standards.
Power Supply Method	Supports grid power, solar power, and hybrid power systems depending on project conditions and energy efficiency needs.
Communication System	Can integrate 4G, 5G, and WiFi communication modules to meet different network coverage and connectivity requirements.

After-Sales Service

01/

Project Installation Technical Guidance
We provide comprehensive installation guides and remote technical support to ensure on-site construction adheres to engineering standards.

02/

Remote System Operation and Maintenance Support
We offer device status monitoring and remote fault diagnosis services via a cloud-based platform.

03/

Modular Repair Services
We support the independent replacement of modular components—such as cameras, light fixtures, and sensors—without the need for complete system disassembly.

04/

Software System Upgrade Support
We provide functional upgrades and security patch updates for the control system to enhance long-term operational performance.

05/

Long-Term Spare Parts Supply Guarantee
We maintain a standardized inventory of spare parts to ensure uninterrupted maintenance support throughout the project's lifecycle.

06/

Fault Response Mechanism
Upon receiving a fault report, we provide remote diagnostics and guidance on solutions.

07/

Technical Documentation Support

We provide comprehensive installation drawings, wiring instructions, and maintenance manuals to support engineering operations.

08/

Project Expansion Support
Additional functionality—such as 5G connectivity, cameras, or sensor modules—can be added to the project based on future requirements.

FAQ

Q: How to pay?

A: T/T: 30% deposit in advance, 70% balance before shipment. L/C at sight is accepted.

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with our own factory.

Q: Can I visit your factory?

A: Yes, factory visits are warmly welcomed.

Q: What is your production capacity?

A: Around 60,000 tons annually with multiple production lines ensuring stable supply and fast delivery.

Q: How do Smart Light Poles work?

A: Smart Light Poles operate by integrating LED lighting modules with an IoT control system to enable remote switching, dimming, and data collection capabilities.

Q: What is the Minimum Order Quantity (MOQ)?

A: Smart Light Poles typically support pilot orders starting from 1 to 5 units; for large-scale projects, production can be phased in batches according to the project schedule.

Q: What is the lead time for delivery?

A: The standard production cycle is 20–35 days, subject to adjustment based on the complexity of the configuration and the order quantity.

Q: What trade terms are available?

A: We commonly utilize FOB, CIF, and EXW trade terms, selected flexibly based on the specific shipping method required for the project.

Q: How are the products packaged?

A: The products are packaged using anti-scratch protective film and wooden pallets, and are shipped in modular components in accordance with international maritime shipping standards.

Q: How is installation performed?

A: Thanks to a segmented structural design, on-site installation is completed quickly via bolt assembly once the foundation has been secured.

Q: What are the shipping methods?

A: We typically utilize sea freight or land transport, with the products packaged and shipped in modular components.

As one of the most professional smart light poles manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy cost-efficient smart light poles for sale here from our factory. Contact us for more details.
