Yifeng Steel Structure: Your Professional Monitoring Tower Supplier！
As a professional factory and manufacturer with over 20 years of deep-rooted industry experience, we were established in 2005 and specialize in the R&D of power transmission towers, communication towers, and various types of steel structural towers.
Extensive Project Experience
Our products have been successfully deployed across a wide range of engineering sectors, including telecommunications, electric power, defense, and meteorology.
Advanced Production Lines
Equipped with cutting-edge machinery—including CNC laser cutters and fully automated angle steel processing lines—to ensure high-precision manufacturing.
End-to-End Production Capabilities
We possess integrated service capabilities encompassing design, manufacturing, installation, and maintenance.
Professional Customization
We provide personalized, one-on-one technical support to address specific requirements regarding dimensions, shapes, and functional specifications.
-
![Modular Guard Towers]()

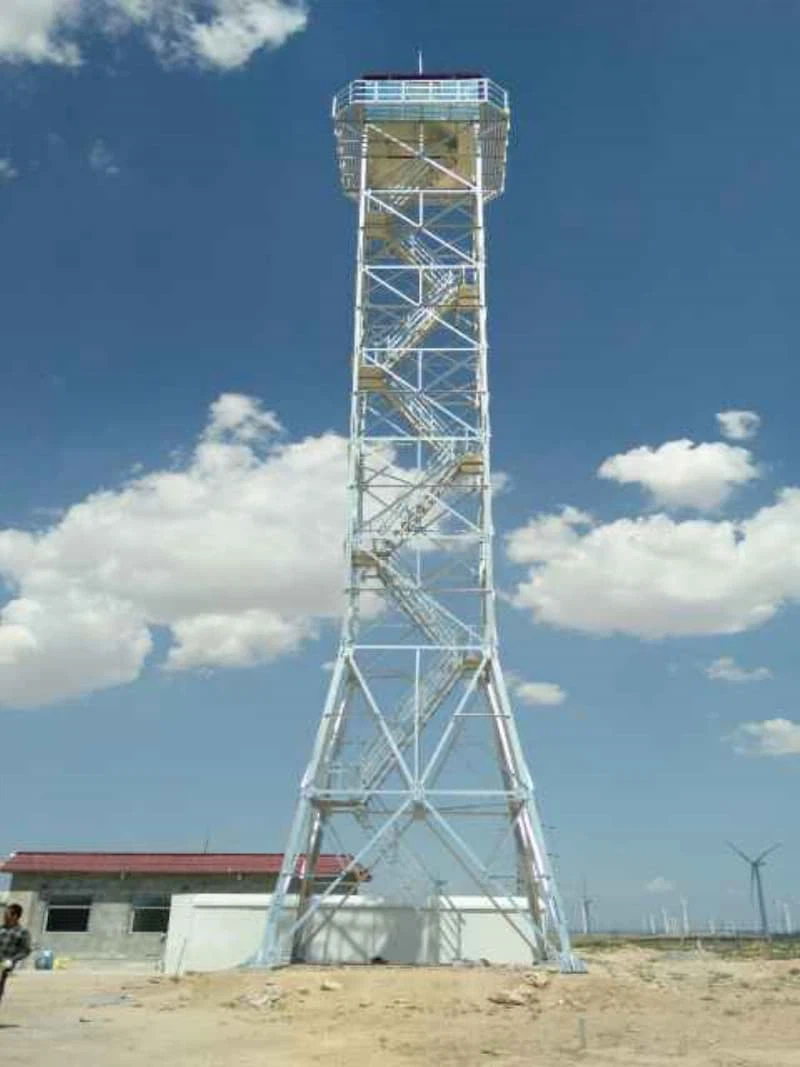

Modular Guard TowersModular Guard Towers are modular steel structure watchtowers suitable for border defense, military and police, park security and other scenarios. They consist of segmented steel pipe towers, -
![Weather Monitoring Tower]()
Weather Monitoring TowerWeather Monitoring Tower is a steel structure device used for meteorological data acquisition and environmental monitoring. It is widely used in weather stations, airports, agriculture, and new -
![Wind Monitoring Tower]()
Wind Monitoring TowerWind Monitoring Tower is a monitoring device used for wind resource measurement and meteorological data acquisition, and is widely used in wind power site selection and new energy assessment. -
![Structure Steel Monitor Tower]()

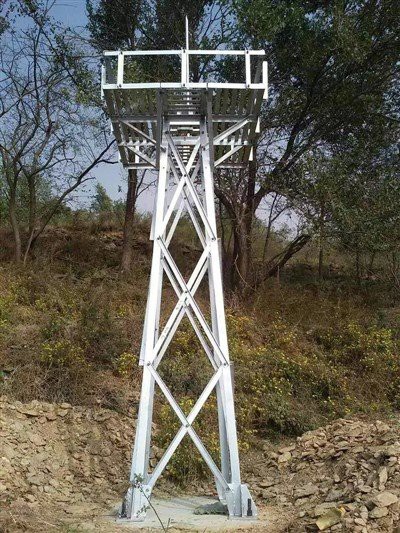

Structure Steel Monitor TowerA steel structure control tower is a type of steel structure control tower used in security, communications, and industrial control. It consists of a steel tower made of a pipe, a platform, and a
Brief Introduction To Monitoring Tower
A monitoring tower is a steel structure used to install monitoring, sensing, or communication equipment at high altitudes. By elevating the equipment above ground, monitoring towers can improve coverage, signal stability, and data accuracy.
Technical Parameters
|
Product name |
Weather Monitoring Tower |
|
Height |
Customized |
|
Usage |
To support wireless communication equipment, such as mobile phone signals, television signals, wireless internet, and other communication devices |
|
Shape |
Cylindrical or polygonal |
|
Material |
Normally Q235B/A36, yield strength≥235Mpa |
|
Platform size/shape |
Depends on the equipment size and weight, or as required |
|
Suface treatment |
Hot dip galvanized, following ASTM123, or other standards as required |
|
Joint of Poles |
Slip joint, flange connected or bolt connected |
|
Welding Standard |
AWS(American Welding Society)D1.1 |
|
Production Process |
Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-package |
|
Package |
Packed with plastic paper, belt, or as required by customer |
|
Life Period |
More than 30 years, depends on the installed environment |
|
Advantages |
Simple structure, easy installation, small footprint, and strong adaptability, widely used in urban and suburban areas |
|
1 |
Maximum air temperature |
45 |
|
2 |
Average temperature |
28 |
|
3 |
Minimum temperature |
5 |
|
4 |
Erection condition |
Temperature -15 at wind velocity -10m/s |
|
5 |
Thunder storm days (per year) |
65 days |
Features of Monitoring Tower
Hot-Dip Galvanized Anti-Corrosion Structure
The main body of the Monitoring Tower is made of Q235/Q345 steel and hot-dip galvanized, maintaining corrosion resistance for approximately 10 years in outdoor environments.
Modular Rapid Installation Design
Using a flange and bolt connection structure, the tower is transported in sections, requiring no welding upon arrival on site. Installation and commissioning can be completed in 4–8 hours under standard conditions.
Independent Solar Power Supply System
The Monitoring Tower uses a combination system of monocrystalline silicon solar panels and lithium iron phosphate batteries. Under standard configuration, it can support continuous power supply for 3–7 days in cloudy or rainy weather, suitable for areas without grid access.
Trailer-Mounted Mobile Chassis Structure
The base uses a hot-dip galvanized trailer-type structure, allowing for vehicle towing and reusability across multiple construction sites, improving equipment utilization and project flexibility.
Steel Incoming Inspection: The Q235/Q345 steel used in the Monitoring Tower undergoes dimensional and strength verification upon arrival at the factory to ensure it meets structural load-bearing requirements.
Welding Quality Inspection: Each weld joint is inspected to ensure uniform and secure connections, free from cracks and incomplete welds.
Galvanized Layer Thickness Inspection: The hot-dip galvanized layer thickness is controlled within the range of 80–100μm to guarantee long-term corrosion resistance.
Electrical System Power-On Inspection: A power-on test is conducted after assembly to ensure stable operation of the power supply system.
Lifting Structure Operation Inspection: The mast undergoes multiple lifting tests to ensure smooth operation and reliable locking.
Sealing and Protection Inspection: The cabinet's sealing structure is inspected to ensure its waterproof and dustproof performance meets outdoor requirements.
Customization Capabilities
|
Item |
Description |
|
Monitoring System Configuration |
Different resolution cameras, infrared night vision modules, and AI analysis systems can be selected according to project needs to achieve multi-scenario monitoring applications. |
|
Power Supply System Capacity |
Supports adjustment of solar panel power and battery capacity configuration to adapt to different regional sunlight conditions and operating time requirements. |
|
Mast Height |
Offers different lifting heights from 6 meters to 12 meters to meet different monitoring range and field of view coverage needs. |
|
Structural Appearance |
Supports customization of cabinet size, color spraying, and company logo to meet project and brand recognition requirements. |
Installation Technical Support: Provides remote technical guidance to assist with installation and system debugging.
Spare Parts Supply Service: Provides standardized spare parts, including batteries, control modules, and connecting components.
Operation and Maintenance Guidance: Provides equipment maintenance instructions and guidance on daily inspection and maintenance procedures.
System Upgrade Support: Supports software upgrades and function expansion services for the monitoring system.
Warranty Service System: Provides repair or replacement support for the core structure and electrical control system within the warranty period.
FAQ
As one of the most professional monitoring tower manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy cost-efficient monitoring tower for sale here from our factory. Contact us for more details.
