Yifeng Steel Structure: Your Professional Electrical Tower Stand Supplier！
As a professional factory and manufacturer with over 20 years of deep-rooted industry experience, we were established in 2005 and specialize in the R&D of power transmission towers, communication towers, and various types of steel structural towers.
Extensive Project Experience
Our products have been successfully deployed across a wide range of engineering sectors, including telecommunications, electric power, defense, and meteorology.
Advanced Production Lines
Equipped with cutting-edge machinery—including CNC laser cutters and fully automated angle steel processing lines—to ensure high-precision manufacturing.
End-to-End Production Capabilities
We possess integrated service capabilities encompassing design, manufacturing, installation, and maintenance.
Professional Customization
We provide personalized, one-on-one technical support to address specific requirements regarding dimensions, shapes, and functional specifications.
-
![Large Electrical Transmission Tower Standing]()

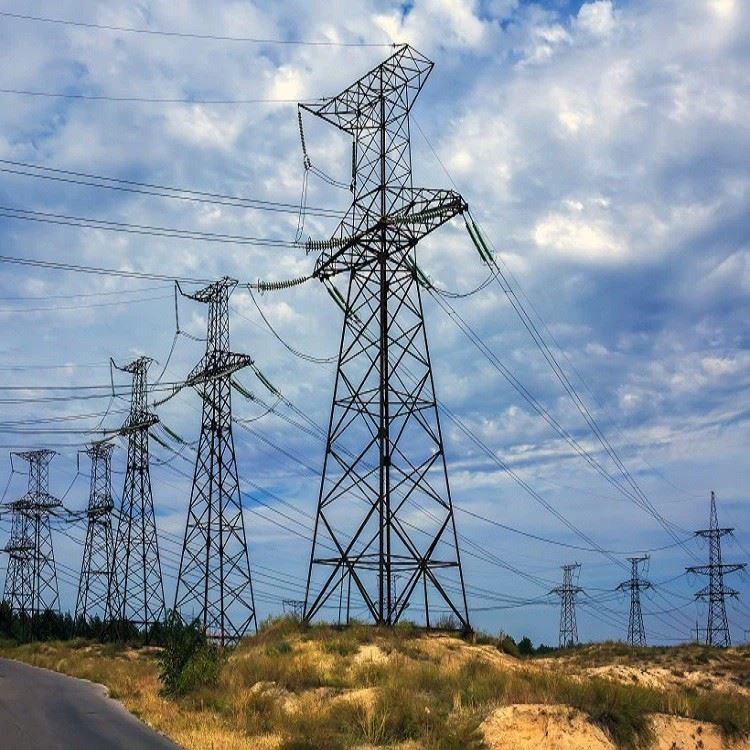

Large Electrical Transmission Tower StandingLarge Electrical Transmission Tower Standing is a high-strength steel lattice tower. It supports ultra-high voltage power lines and keeps safe clearance from the ground. It is used in power grid -
![Substation Steel Structure Electrical Power]()

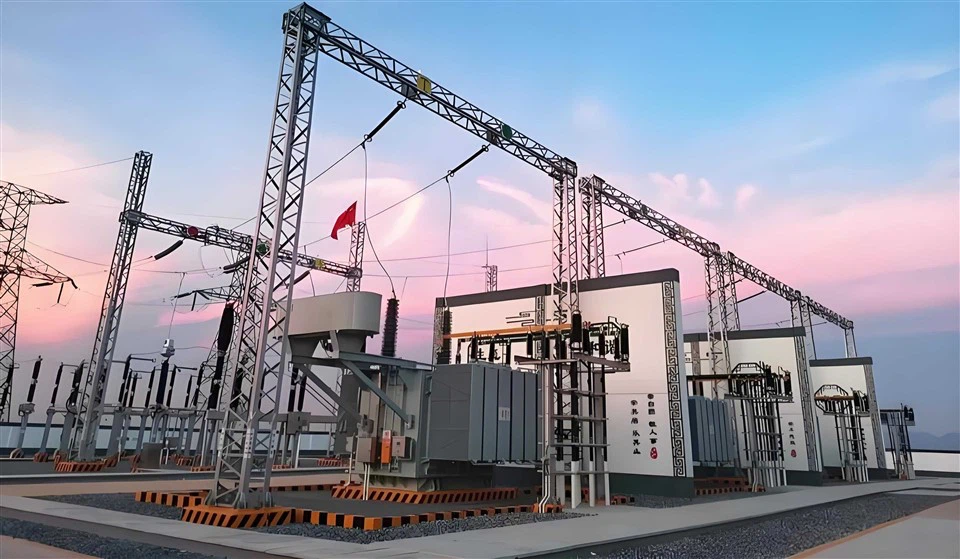

Substation Steel Structure Electrical PowerSubstation Steel Structure Electrical Power provides strong frameworks to support high-voltage transformers, switchgear, and busbars in substations. It is used in electrical utilities, industrial -
![Electrical Transmission Towers Stand]()
Electrical Transmission Towers StandElectrical Transmission Towers Stand is a steel structure for supporting overhead high-voltage transmission lines. It is widely used in power grid projects, including 110kV–1000kV systems, -
![Electric High Tension Tower]()
Electric High Tension TowerElectric High Tension Tower is a steel structure tower used to support high-voltage transmission lines. It is applied in power grid and energy transmission projects and consists of the tower body,
Brief Introduction To Electrical Tower Stand
Electrical Tower Stands are steel structural support devices used for the load-bearing and fixing of towers in power transmission and distribution lines, suitable for substations and high-voltage transmission projects.
Technical Parameters
|
Item |
Specification |
|
Shape |
Round, Conical, Polygonal, Taper, Tubular, 8 sides, 12 sides, 16 sides |
|
Voltage |
3KV – 330KV |
|
Material |
Steel Q235B, Q345B, Q420B, Q460C, GR65, or customized |
|
Thickness |
Up to 35mm (Q345B), 24mm (ASTM A572 GR65) |
|
Galvanization Thickness |
86 μm or customized |
|
Coupling Method |
Slip joints or flange joint |
|
Surface Treatment |
Hot dip galvanizing or painting |
|
Standard |
ISO9001:2008, China National Standard |
|
Steel Grade |
Thickness / Diameter (mm) |
Anti-push / Bending / Press Strength (N/mm²) |
Anti-shear Strength (N/mm²) |
|
Q235 |
≤16 |
215 |
125 |
|
Q235 |
>16 – 40 |
205 |
120 |
|
Q235 |
>40 – 60 |
200 |
115 |
|
Q235 |
>60 – 100 |
190 |
110 |
|
Q345 |
≤16 |
310 |
180 |
|
Q345 |
>16 – 35 |
295 |
170 |
|
Q345 |
>35 – 50 |
265 |
155 |
|
Q345 |
>50 – 100 |
250 |
145 |
|
Q420 |
≤16 |
380 |
220 |
|
Q420 |
>16 – 35 |
360 |
210 |
|
Q420 |
>35 – 50 |
340 |
195 |
|
Q420 |
>50 – 100 |
325 |
185 |
|
Q460 |
≤16 |
415 |
240 |
|
Q460 |
>16 – 35 |
395 |
230 |
|
Q460 |
>35 – 50 |
380 |
220 |
|
Q460 |
>50 – 100 |
360 |
210 |
Features of Electrical Tower Stand
High-Strength Load-Bearing Structure
Made of Q345B/Q420B high-strength steel with spatial truss design, ensuring stable load-bearing without deformation.
Galvanized Corrosion Protection
Hot-dip galvanizing provides strong corrosion resistance for long-term outdoor use.
Type Comparison Table
|
Tower Type |
Tower Category |
Angle Deviation |
Tower Structure |
Insulator Type |
Typical Application |
|
A Type |
Suspension Tower |
0° – 2° |
Two-leg structure |
Suspension insulator |
Used for straight transmission lines with very small direction change |
|
B Type |
Tension Tower |
2° – 15° |
Two-leg structure |
Tension insulator |
Suitable for moderate direction changes |
|
C Type |
Tension Tower |
15° – 30° |
Three-leg structure |
Tension insulator |
Used where transmission line direction changes significantly |
|
D Type |
Heavy Tension / Angle Tower |
30° – 60° |
Reinforced multi-leg structure |
Tension insulator |
Designed for sharp line direction changes and higher stability requirements |
Quality Control
Raw Material Inspection: The steel used must undergo composition and mechanical property testing to ensure that the tensile and yield strengths meet the design requirements.
Material Cutting Control: CNC cutting equipment is used for material cutting to ensure that dimensional errors are controlled within ±0.2mm.
Welding Quality Inspection: Welds must undergo visual and non-destructive testing to ensure the absence of cracks, porosity, and incomplete weld defects.
Zinc Coating Inspection: The hot-dip galvanized layer thickness must be uniform, ensuring a corrosion protection effect of ≥86μm.
Finished Product Structure Inspection: After completion, an overall structural and connection accuracy inspection will be conducted to ensure that the project installation standards are met.
Customization Capabilities
|
Item |
Options / Description |
|
Structural Dimensions |
The overall height, span, and load-bearing structure can be adjusted according to the transmission line height, tower type, and site terrain conditions. |
|
Material Grade |
Q235B, Q345B, Q420B, and other steel grades with varying strength levels are available. |
|
Corrosion Protection |
Customizable options include hot-dip galvanizing, thickened galvanizing, or spray coating anti-corrosion treatments. |
|
Connection Structure |
Flange connection or bolted assembly structural designs are available. |
After-Sales Service
Installation Technical Support
Complete installation drawings and structural specifications will be provided to ensure smooth on-site construction.
Quality Issue Handling
Repair or replacement solutions will be provided for structural problems occurring during the warranty period.
Long-Term Spare Parts Supply
A continuous supply of bolts, connectors, and other supporting components will be available to meet future maintenance needs.
Engineering Collaboration Services
Structural optimization and technical support can be provided for large-scale projects.
FAQ
As one of the most professional electrical tower stand manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy cost-efficient electrical tower stand for sale here from our factory. Contact us for more details.
