Yifeng Steel Structure: Your Professional Tension Towers Supplier！

As a professional factory and manufacturer with over 20 years of deep-rooted industry experience, we were established in 2005 and specialize in the R&D of power transmission towers, communication towers, and various types of steel structural towers.

Extensive Project Experience

Our products have been successfully deployed across a wide range of engineering sectors, including telecommunications, electric power, defense, and meteorology.

Advanced Production Lines

Equipped with cutting-edge machinery—including CNC laser cutters and fully automated angle steel processing lines—to ensure high-precision manufacturing.

End-to-End Production Capabilities

We possess integrated service capabilities encompassing design, manufacturing, installation, and maintenance.

Professional Customization

We provide personalized, one-on-one technical support to address specific requirements regarding dimensions, shapes, and functional specifications.

High Tension Tower
High Tension Towers are steel structure towers used to support high-voltage/ultra-high-voltage transmission lines and are applied in power grid and new energy transmission projects.
High Tension Cable Tower
High-tensile cable towers are used to support high-voltage/ultra-high-voltage line conductors and ground wires. They consist of an angle steel tower body, crossarms, and connectors, and include types

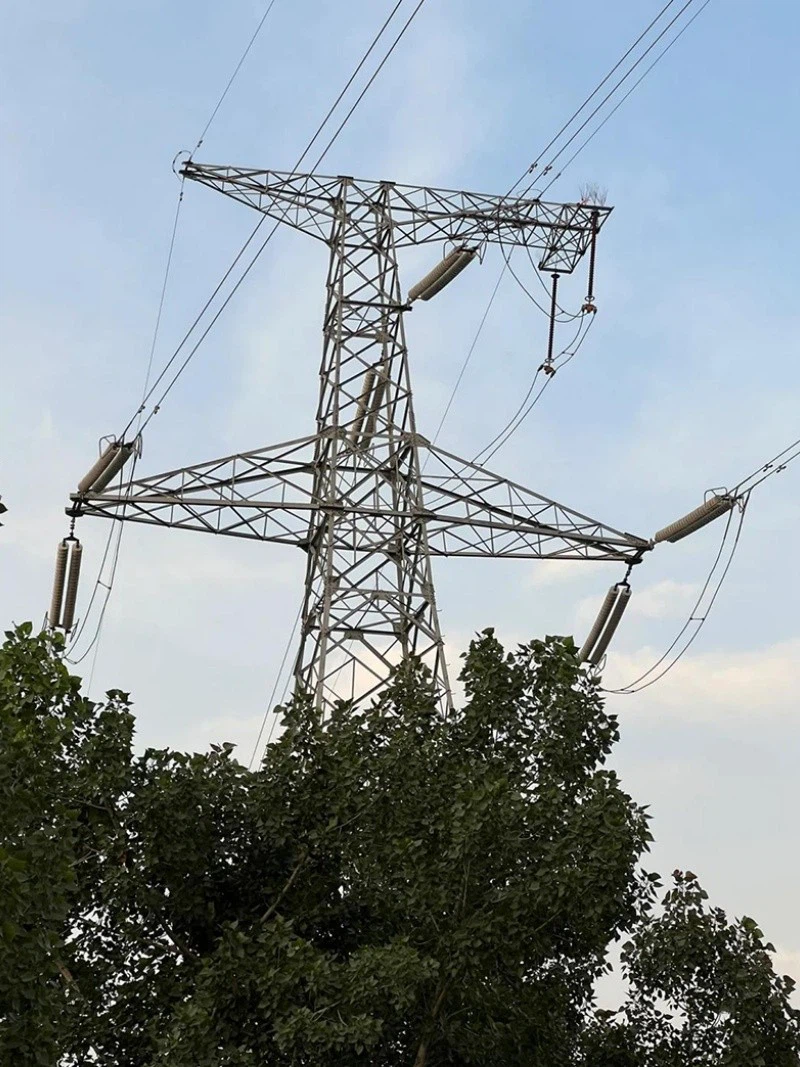

Tension Transmission Tower
Tension Transmission Tower maintains stability for power lines at key points, even in harsh weather. It is commonly deployed in high-voltage transmission across complex terrains like valleys,

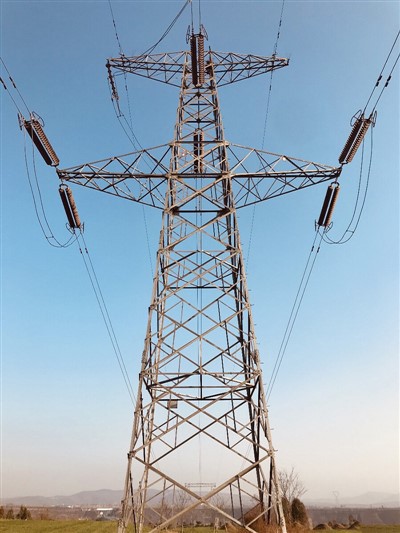

High Tension Wire Tower
High Tension Wire Tower supports high-voltage transmission lines from 110kV to 1000kV. It is used in power transmission networks, especially in areas with long spans, high winds, or heavy ice loads.

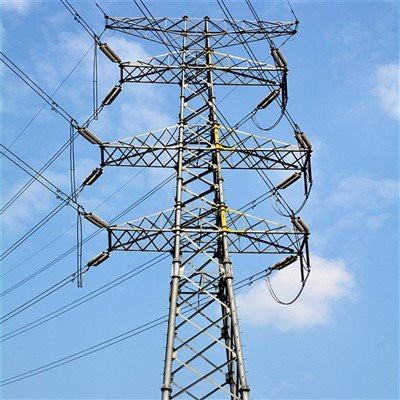

High Tension Electric Tower
High Tension Electric Tower is a robust steel structure engineered to support high-voltage transmission lines, ensuring safe and stable power distribution. It is used in power grids, remote

Brief Introduction To Tension Towers

Tension Towers are load-bearing towers within high-voltage power transmission systems, designed for use at line angles, terminal points, and in large-span transmission projects.

Technical Parameters

Height	From 10M-100M or according to client's requirement
Suit for	Electric Power Transmission and Distribution
Shape	Angular / tubular lattice or monopole
Material	Normally Q235B/A36,Yeild Strength≥235MPa
	Q355B/A572,Yeild Strength≥355MPa
	As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400
Power Capacity	4kV to 1100kV
Tolerance of the dimension	According to client's requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client's requirement
Joint of Poles	Bolt connected, flanged connected
Standard	ISO9001:2008
Length of per section	Within 13M once forming
Welding Standard	AWS(American Welding Society)D 1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages
Packages	Packing with plastic paper or according to client's requirement
Life Period	More than 25 years, it is according to installing environment

Steel material		Anti-push, bending and press strength (N/mm2)	Anti-shear strength (N/mm2)
Grade	Thickness or diameter (mm)	Anti-push, bending and press strength (N/mm2)	Anti-shear strength (N/mm2)
Q235 Steel	≤16	215	125
	>16~40	205	120
	>40~60	200	115
	>60~100	190	110
Q345 Steel	≤16	310	180
	>16~35	295	170
	>35~50	265	155
	>50~100	250	145
Q420 Steel	≤16	380	220
	>16~35	360	210
	>35~50	340	195
	>50~100	325	185
Q460 Steel	≤16	415	240
	>16~35	395	230
	>35~50	380	220
	>50~100	360	210

Features of Tension Towers

High-Strength Load-Bearing Structure

Constructed from Q355/Q420 steel, these Tension Towers possess exceptional load-bearing capacity, making them ideally suited for high-stress transmission lines at corner and terminal points.

Standardized Structural Design

Designed based on a unified structural model applicable to 35kV–1000kV lines, this approach reduces the complexity of engineering calculations and enhances the efficiency of coordination between design and construction phases.

Modular Assembly Structure

Utilizing a bolted, segmented assembly method, the structure facilitates ease of transport and on-site installation, resulting in an approximate 30% increase in construction efficiency.

Adaptability to Complex Routes

Suitable for transmission lines traversing mountainous terrain, river crossings, and long-distance routes; the design supports adjustments for line angle changes and variations in elevation.

Quality Control

Raw Material Incoming Inspection
Upon arrival at the facility, all steel materials (Q235/Q355/Q420) undergo testing for chemical composition and mechanical properties to ensure that their yield strength aligns with the specifications in the design drawings.

Steel Cutting Precision Inspection
Following CNC cutting, the dimensions of each individual piece are cross-checked; for critical structural components, deviations in length and bolt hole positioning are strictly controlled within a tolerance of ±0.2 mm.

Component Processing Inspection
Segmented inspections are conducted during the drilling, bending, and welding stages to ensure that there are no structural deviations at the load-bearing connection nodes.

Weld Quality Inspection
Critical welded joints undergo a dual inspection process—combining ultrasonic testing with visual examination—to verify that weld continuity and load-bearing strength fully comply with design standards.

Hot-Dip Galvanizing Inspection
Upon completion of the hot-dip galvanizing process, the thickness of the zinc coating is measured and controlled within the range of 85–100 μm, ensuring uniform anti-corrosion coverage with no uncoated spots.

Component Pre-Assembly Inspection
Prior to shipment, a trial assembly is performed to verify the alignment of bolt holes, as well as the overall structural verticality and load-bearing consistency.

Finished Structure Verification
The finished structure undergoes a comprehensive verification against the design drawings to confirm that the tower configuration, dimensions, and load-bearing parameters all fully meet the engineering design requirements.

Pre-Packaging Protection Inspection
Before packaging, the galvanized coating and component surfaces are inspected, followed by the application of anti-rust treatments and protective measures to safeguard the materials during transit.

Customization Capabilities

Parameter	Specification
Voltage Level	Designed for structural strength and insulation configuration for transmission levels of 35 kV – 1000 kV
Tower Height	Customizable from 20 – 120 meters
Material Grade	Optional steel grades: Q235 / Q355 / Q420
Anti-corrosion Coating Thickness	Galvanized layer adjustable from 65 – 120 μm
Structural Type	Can be designed as angle steel tower, steel pipe tower, or hybrid structure
Foundation Connection	Options include anchor bolt foundation or concrete embedded structure

After-Sales Service

01/

Engineering Drawing Support
We provide complete structural design drawings and installation guide documents, ensuring that construction teams can utilize them directly for project implementation.

02/

Installation Technical Guidance
We offer remote or on-site installation guidance to address issues related to tower assembly, bolt tightening, and foundation alignment.

03/

Structural Operational Support
During the operational phase, we provide technical support for structural stress analysis and transmission line compatibility assessments, facilitating optimization and adjustments under complex operating conditions.

04/

Long-Term Spare Parts Supply
We ensure the long-term supply of bolts, connectors, and maintenance components, guaranteeing the continuity of future maintenance for power transmission lines.

FAQ

Q: How to pay?

A: T/T: 30% deposit in advance, 70% balance before shipment. L/C at sight is accepted.

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with our own factory.

Q: Can I visit your factory?

A: Yes, factory visits are warmly welcomed.

Q: What is your production capacity?

A: Around 60,000 tons annually with multiple production lines ensuring stable supply and fast delivery.

Q: Installation Method?

A: Features a bolted, segmented assembly structure, allowing for modular assembly on-site.

Q: Transportation Method?

A: Components are shipped in a disassembled state, making the method suitable for both sea freight and long-distance land transport.

Q: Lead Time?

A: The production cycle typically ranges from 20 to 45 days, depending on the structural complexity.

Q: Packaging Method?

A: Steel components are bundled and treated with rust-proofing measures.
