China Communication Towers Manufacturers, Suppliers and Factory - Communication Towers Cost

Yifeng Steel Structure: Your Professional Communication Towers Supplier！

As a professional factory and manufacturer with over 20 years of deep-rooted industry experience, we were established in 2005 and specialize in the R&D of power transmission towers, communication towers, and various types of steel structural towers.

Extensive Project Experience

Our products have been successfully deployed across a wide range of engineering sectors, including telecommunications, electric power, defense, and meteorology.

Advanced Production Lines

Equipped with cutting-edge machinery—including CNC laser cutters and fully automated angle steel processing lines—to ensure high-precision manufacturing.

End-to-End Production Capabilities

We possess integrated service capabilities encompassing design, manufacturing, installation, and maintenance.

Professional Customization

We provide personalized, one-on-one technical support to address specific requirements regarding dimensions, shapes, and functional specifications.

Monopole Communication Tower
The Monopole Communication Tower is a high-strength Q345B steel single-tube structure engineered for 5G/4G antenna loading and broadcasting in space-constrained sites.
Ground Telecommunication Tower
The Ground Telecommunication Tower supports wireless communication systems, ensuring reliable coverage for telecom networks, mining, emergency services, and broadcasting.
Communication Antenna Tower
The Communication Antenna Tower supports antennas for reliable data transmission, commonly used in 4G/5G networks, microwave backhaul, and emergency communication systems.

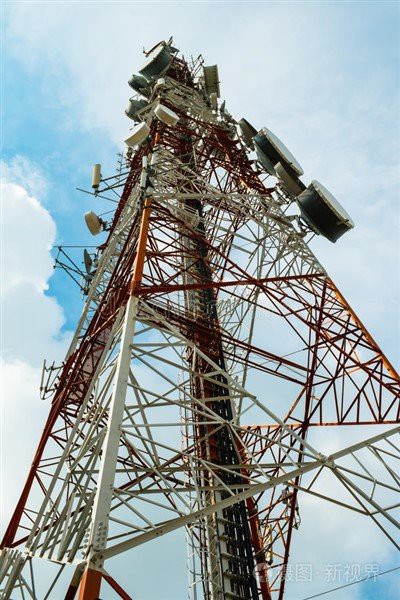

Vertical Bridge Cell Towers
Vertical Bridge Cell Tower is designed to support multiple wireless carriers and large broadcast equipment on a single platform. Used in 5G network deployments, public safety communications, and

Brief Introduction To Communication Towers

Communication Towers are tall structural assemblies designed to support mobile communication, broadcasting, and wireless networking equipment; they are ideally suited for use in communication base stations and signal coverage projects.

Technical Parameters

Product name	Monopole communication tower
Height	10m ~ 100m, customized
Usage	To support wireless communication equipment, such as mobile phone signals, television signals, wireless internet, and other communication devices
Shape	Cylindrical or polygonal
Material	Normally Q235B/A36, yield strength≥235Mpa Q345B/A572, yield strength≥345Mpa Hot Rolled coil from ASTM572, GR65,GR50,SS400
Platform size/shape	Depends on the equipment size and weight, or as required
Suface treatment	Hot dip galvanized, following ASTM123, or other standards as required
Joint of Poles	Slip joint, flange connected or bolt connected
Welding Standard	AWS(American Welding Society)D1.1
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-package
Package	Packed with plastic paper, belt, or as required by customer
Life Period	More than 30 years, depends on the installed environment
Advantages	Simple structure, easy installation, small footprint, and strong adaptability, widely used in urban and suburban areas

Features of Communication Towers

Ground Telecommunication Tower suppliers

High-Strength Structure

Constructed from Q235B or Q345B structural steel, these communication towers feature a robust and stable framework capable of supporting multiple sets of communication antennas and associated equipment.

Long-Life Corrosion Protection

The surface undergoes ASTM A123 hot-dip galvanization treatment, ensuring a typical service life of over 30 years in outdoor environments.

High Installation Efficiency

Utilizing a segmented structure and bolted connections, on-site assembly is simplified, effectively reducing construction time by approximately 30%.

Quality Control

Raw Material Inspection

Prior to entering the facility, all steel materials undergo inspection of their material certificates and specifications to ensure compliance with Q235B or Q345B standards.

Steel Dimension Inspection

Before production begins, the thickness, length, and specifications of the steel materials are verified to ensure they meet design requirements.

Cutting Dimension Inspection

After cutting, the dimensions of the steel components are checked for dimensional errors to ensure that each part conforms to the design drawings.

Drilling Position Inspection

The diameters and spacing of connection holes are inspected to guarantee that all structural members align precisely during installation.

Welding Quality Inspection

All welded joints are inspected in accordance with the AWS D1.1 standard to ensure the reliability of structural connections.

Pre-Assembly Inspection

Selected tower components undergo trial assembly to verify structural fit and installation accuracy.

Galvanizing Quality Inspection

The uniformity and adhesion of the hot-dip galvanized coating are inspected to ensure stable corrosion protection performance.

Finished Product Inspection

Prior to shipment, a final verification is conducted regarding the tower dimensions, component quantities, and accessories.

Customization Capabilities

Item	Specification
Tower Height	Can be customized from 10 m to 100 m according to communication coverage requirements.
Tower Structure	Available in monopole tower, angle steel tower (lattice tower), or polygonal tower designs.
Material Grade	Manufactured using Q235B, Q345B, or ASTM standard structural steel.
Surface Anti-corrosion Treatment	Options include hot-dip galvanizing, painting, or powder coating.
Antenna Platform	Installation platforms can be designed in different sizes according to equipment dimensions.
Connection Method	Optional slip joint connection, flange connection, or bolted connection structure.

After-Sales Service

Installation Technical Support
We provide installation drawings and structural specifications to assist with the on-site assembly of the tower structure.

Project Design Consultation
We offer recommendations regarding tower height and structural configuration tailored to the specific requirements of your telecommunications project.

Spare Parts Supply
We provide supplementary supplies of spare parts and components, including bolts, platforms, and connectors.

Usage and Maintenance Guidance
We offer maintenance recommendations to help ensure the structural stability of the tower and extend its service life.

Quality Assurance Services
We provide a limited-term quality warranty, offering repair or replacement support during the warranty period.

FAQ

Q: How to pay?

A: T/T: 30% deposit in advance, 70% balance before shipment. L/C at sight is accepted.

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with our own factory.

Q: What is the delivery time?

A: 15–35 days depending on product type and order quantity.

Q: Can I visit your factory?

A: Yes, factory visits are warmly welcomed.

Q: What is your production capacity?

A: Around 60,000 tons annually with multiple production lines ensuring stable supply and fast delivery.

Q: What is the primary purpose of communication towers?

A: Communication towers are primarily used to mount communication antennas, broadcasting equipment, and wireless networking devices to extend signal coverage.

Q: How are they installed?

A: They are assembled on-site using a bolted structural design, making the installation process relatively simple.

Q: What types of equipment can be installed?

A: They can accommodate mobile communication antennas, microwave equipment, broadcasting equipment, and surveillance devices.

Q: Is regular maintenance required?

A: Typically, only periodic inspections of the bolted connections and the anti-corrosion surface coating are necessary.

Q: How are they packaged?

A: They are typically packaged using plastic wrapping, steel strapping, or wooden pallets.

As one of the most professional communication towers manufacturers and suppliers in China, we offer a wide range of products with superior quality. Please feel free to buy cost-efficient communication towers for sale here from our factory. Contact us for more details.
