Introduction

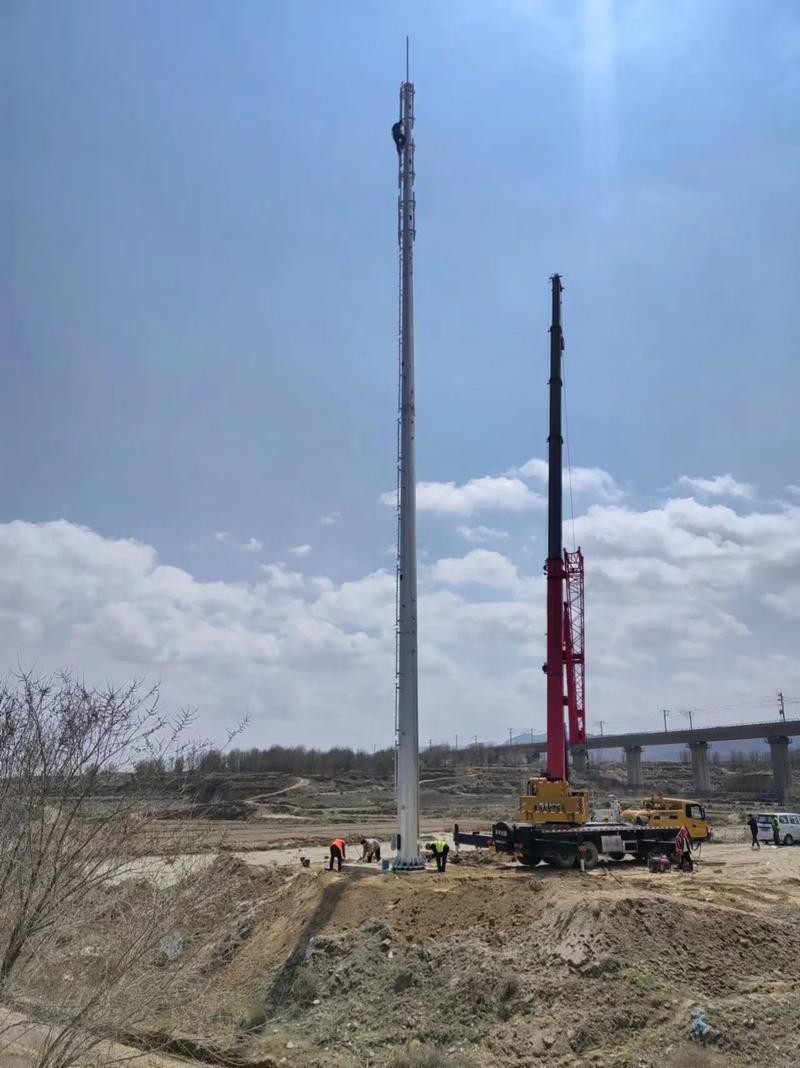

The Monopole Communication Tower is a high-strength Q345B steel single-tube structure engineered for 5G/4G antenna loading and broadcasting in space-constrained sites.

Parameters

Parameter Category	Core Indicators
Basic Parameters	Tower height (10-60m), Tower body diameter (bottom φ600-1200mm, top φ200-400mm), Taper (1:50~1:100)
Main Material Parameters	Steel pipe material (Q345B/Q355B), Wall thickness (6-20mm, gradually changing with height), Connection method (Flange/Welding)
Load Parameters	Design wind speed (30-50m/s), Antenna load (single arm ≤800kg, maximum 4 arms), Seismic resistance level (≥8 degrees)
Ancillary Facilities	Built-in ladder, Maintenance platform (one every 10-15m), Feeder cable rack (arranged along the tower body)
Corrosion Protection Parameters	Hot-dip galvanizing layer thickness (steel thickness ≤-5, galvanizing layer ≥55μm; steel thickness ≥-6, galvanizing layer ≥85μm) or fluorocarbon paint coating (weather resistance ≥25 years)

Key Features

High Strength Construction: Made from Q345B carbon steel with 345 MPa yield strength, designed to withstand extreme weather and heavy loads.

Compact Design: The single-tube structure is perfect for space-limited urban areas and narrow corridors, offering high performance with a small footprint.

Quick Installation: Modular components and sliding joints reduce installation time by 30-40%, cutting labor costs and speeding deployment.

Customization Services

Custom Height Options: Available from 10m to 50m, tailored to project needs.

Adjustable Load Capacity: Custom joint diameters and wall thicknesses for varying antenna weights and wind loads.

Antenna Mounting: Custom antenna configurations and mounting brackets for diverse equipment.

Weather-Resistant Coatings: Specialized coatings for high humidity, coastal air, or extreme climates.

Applications

Urban 5G Deployment: Supporting high-frequency, high-density antenna arrays.

Highway Corridors: Continuous coverage in narrow right-of-way areas.

Residential & Protected Zones: Low-profile designs that meet strict local zoning laws.

Smart Utility Poles: Combining 5G cells with LED lighting and surveillance.

Factory Advantages

Advanced Production Lines -12 automated CNC steel angle lines ensure consistent quality for large-scale tower fabrication.

High Precision Assembly -Hole alignment within 0.5 mm allows fast and safe on-site installation.

Custom Engineering Support -Tower height and load capacity can be tailored to local wind, seismic, and project requirements.

Integrated Manufacturing -In-house cutting, welding, and galvanizing provide cost-effective factory-direct pricing.

Large-Scale Capacity -Able to handle bulk orders to meet international power infrastructure project demands.

FAQ

Q: How do you ensure the structural integrity of the tower?

A: We use automated submerged arc welding to ensure continuous, high-strength welds, providing a strong and durable structure that meets international standards.

Q: How is the tower affected by wind loads?

A: The design can be tailored to meet specific wind load requirements based on geographical location, with custom diameters and wall thicknesses for optimal performance in high-wind areas.

Q: How do you ensure the quality of the towers?

A: Every tower undergoes rigorous quality checks, including material inspection, dimensional verification, and welding quality control to ensure it meets international standards.

Q: Do you provide after-sales service?

A: Yes, we offer installation guidance, technical support, and maintenance advice to ensure proper setup and long-term performance of the towers.

Q: What payment methods do you accept?

A: We accept bank transfers, L/C, and PayPal for international transactions. Payment terms can be negotiated based on the order size.

Q: Can I get a sample of the tower before placing a bulk order?

A: Yes, we can provide a sample tower for testing or project evaluation. Please contact us for details on sample pricing and lead time.
